Expanding on the original FS7, Sony’s PXW-FS7M2 XDCAM Super 35 Camera System is a flexible 4K camera system. Designed as a camera that is at home on productions as diverse as “Cinéma Vérité”-style documentaries, reality TV, commercial, and corporate applications It features a Super 35mm sized sensor that allows you to capture images with cinematic depth of field. The camera incorporates a stronger locking E-mount that is fully compatible with E-Mount lenses, and supports all electronic connections. The locking mount reduces lens play, and allows you to use most 35mm lenses including PL, EF, Leica, and Nikon via optional adapters. This stronger E-mount is ideal for using heavier-long cine-zooms without the need for additional lens support.
Just behind the lens mount sits an electronic variable ND system that provides a clear filter and 3 user definable presets. The variable ND can be adjusted to provide between 2 and 7 stops of ND. The camera can capture footage to optional on-board XQD media cards in either DCI 4K (4096 x 2160) or UHD 4K (3840 x 2160) at up to 59.94 fps or HD at up to 180 fps.
The camera records in your choice of XAVC-I, XAVC-L, or MPEG-2. However, MPEG-2 recording does not support the high data rates the camera can generate when shooting in UHD, and is limited to recording HD video only. The camera incorporates Dual XQD media card slots that support simultaneous or relay recording. An ergonomically designed handgrip provides control of many of the camera’s functions and features an adjustable length support arm.

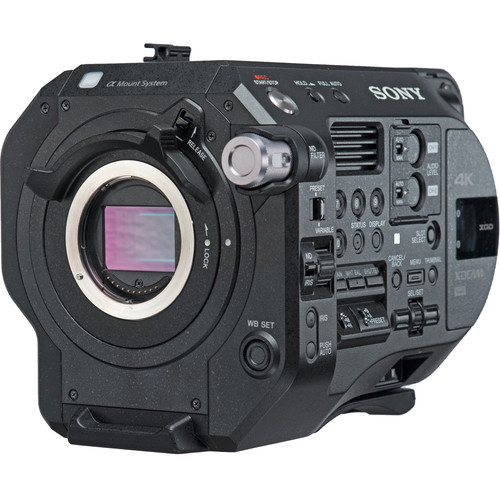

The PXW-FS7M2 is equipped with a locking E-Mount that provides improved stability and strength compared to a standard E-Mount. It features a safety interlock system that helps prevent accidental disengagement of your lens from the camera body. The locking mount also reduces lens play compared to a standard E-Mount and the locking mount is strong enough to support long cine and ENG zooms that normally require a lens support.
It accepts optional E-Mount lenses from Sony, Zeiss and other manufacturers. The shallow flange distance of the E-Mount allows you to mount most 35mm lens types such as PL, Canon EF, Leica, Nikon, as well as many others with simple mechanical adapters.
Electronic Variable ND
Behind the lens mount sits a retractable clear filter. When you engage the internal ND filters, the clear filter retracts and a stepless electronic ND filter drops into place maintaining the proper flange focal distance. You can program the electronic ND filter to act as three individual filters and rotating the filter knob will step between these presets.
Additionally, you can manually adjust the density of the filter from 2 to 7 stops. One of the advantages of the electronically variable ND filter is that you can use the iris on your lens to set your depth of field, and then make exposure adjustments with the ND, as it does not introduce any color shift as the strength of the ND changes.
Redesigned Viewfinder and Mic Holder Mount

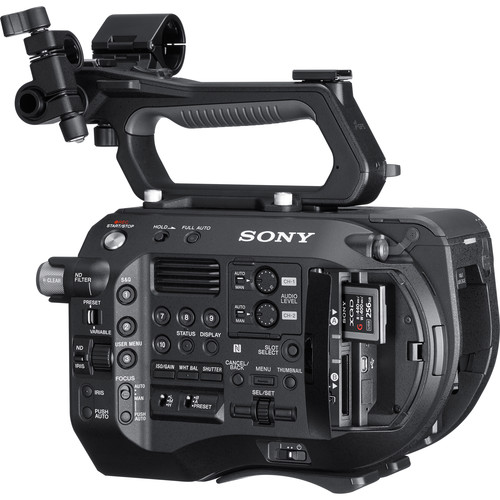

With the PXW-FS7M2 the viewfinder and mic holder mount has been repositioned. The viewfinder and mic holder now attach to a replaceable 15mm rod. This allows you to swap out the included rod with a longer rod (not included), allowing you to move the position of the viewfinder or mic holder relative to the camera. You can adjust the position of the viewfinder so a left-eye shooter can use their left eye, while the camera is resting on their right shoulder.
In addition, the viewfinder itself now rides on a square mounting rod that ensures level operation.
